Current page: Home > ProductsScrew conveyor of decanter centrifuge
Main uses
This product can be used in animal protein, vegetable protein, fermentation liquor, coffee, tea, edible oil, fruit juice, pectin, wine and starch processing in food industry; drilling fluid, industrial wastewater, municipal wastewater, and plastic classification in environmental protection field; ore milling, organic chemical industry, polymer industry, inorganic chemical industry and alcohol production in petrochemical field.
Main features
?♦ Automatic, continuous, and long-term operation, closed operation can be achieved.
?♦ High production capacity and compact structure.
?♦ It is greatly adaptable to materials.
?♦ Vertical engine base, stable operation and low vibration speed.
?♦ Two-motor control, drum and spiral speed is stepless adjustable.
Configuration selection
?♦ Vertical and low platform engine base
?♦ Single head, double head, and multiple head spiral conveyor
?♦ Spiral conveyor blade is coated with high hardness alloy and embeded with high hardness alloy slice
?♦ Cycloid gear, planetary gear and hydraulic differential
?♦ Single motor, double motor, and hydraulic motor
?♦ common motor, explosion-proof motor and variable frequency motor
?♦ Frequency converting control and fluid coupling
?♦ Grease self-lubrication, circulating forced lubrication
?♦ Nitrogen protection, vibration protection, speed monitoring, overload protection, electromechanical interlocking
Materials:
?♦ Carbon steel, corrosion-resistant stainless steel and dual-phase steel
Working process chart

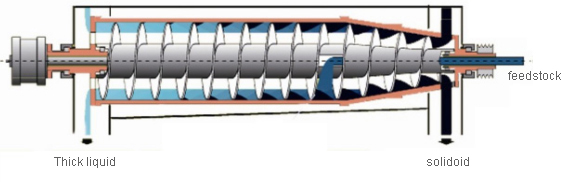

liquid-solid two phase dehydration/cleaning type

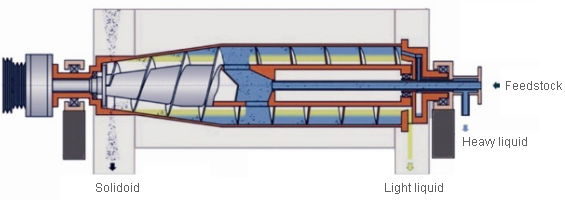

liquid-liquid-solid three phase separation type
Technical parameters
|
Model |
Drum diameter (mm) |
Drum speed |
Separation factor |
Aspect ratio |
Throughput capacity |
Motor power |
Weight |
Size |
|
LW260×800 |
260 |
5000 |
3640 |
3.1 |
4 |
11 |
900 |
1800*800*1000 |
|
LW300×1200 |
300 |
4000 |
2688 |
4 |
6 |
11 |
1200 |
2100*900*1100 |
|
LW350×1500 |
350 |
3800 |
2850 |
4.3 |
8 |
15 |
2000 |
3200*1000*1300 |
|
LW400×1200 |
400 |
3500 |
2750 |
3 |
10 |
15 |
2200 |
3250*1000*1100 |
|
LW400×1600 |
400 |
3500 |
2750 |
4 |
10 |
18.5 |
2400 |
3800*1000*1250 |
|
LW400×1800 |
400 |
3500 |
2750 |
4.4 |
12 |
22 |
2500 |
4000*1000*1250 |
|
LW450×1800 |
450 |
3300 |
2740 |
4 |
20 |
30 |
3000 |
4200*1200*1350 |
|
LW450×2150 |
450 |
3300 |
2740 |
4.8 |
25 |
37 |
3500 |
4600*1200*1350 |
|
LW500×2000 |
500 |
3000 |
2500 |
4 |
35 |
45 |
4000 |
4650*1300*1500 |
|
LW530×2280 |
530 |
2800 |
2350 |
4.3 |
50 |
45 |
4300 |
4800*1300*1500 |
|
LW650×2600 |
650 |
2400 |
2100 |
4 |
80 |
55 |
6500 |
4900*1450*1650 |
|
LW720×2500 |
720 |
2200 |
1950 |
3.5 |
90 |
75 |
7000 |
5000*1600*1700 |
